Unique innovation: Single-layer, double-side conductive fabric

Revolutionizing linemen safety with Electrostatics Ltd”s conductive fabric

Working with high-voltage equipment demands the highest standards of safety. Electrostatics Ltd is at the forefront of developing conductive clothing that shields linemen from the dangers of 50-60 Hz electric fields and potential electric shocks. To avoid adverse physiological effects, the conductive clothing must function as a Faraday cage. That requires a particular conductive material structure. Our latest product, a single-layer, double-side conductive fabric, sets a new benchmark in the industry.

The need for advanced conductive fabrics

Traditional conductive clothing often incorporates metal fibers or metalized polymers such as silver. Despite their effectiveness, have drawbacks like high costs and susceptibility to contamination. More critically, conventional single-layer conductive materials can cause discomfort due to moisture from sweat, reducing the effectiveness of the clothing and causing skin irritation.

On the other hand, human sweat can also corrode the conductive fibers of the clothing material, causing it to lose its conductivity and thus reduce its lifespan. Considering that many utilities use conductive clothing daily, its service life reduction can be a severe problem from both a technical and an economic point of view. In addition, traditional clothing containing only conductive layers requires non-conductive underwear, significantly reducing the comfort of linemen in hot summer weather.

Electrostatics Ltd’s Single-layer, Double-side Fabric: a technological leap

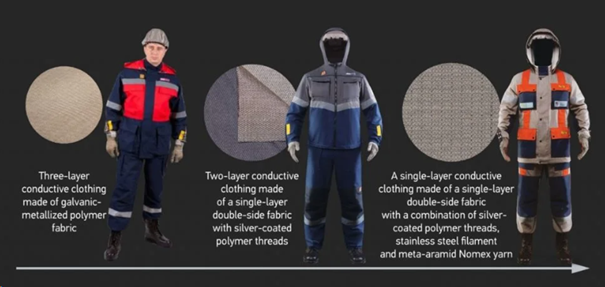

Recognizing these challenges, Electrostatics Ltd has innovated a unique material structure to counter the limitations of previous designs (Figure 1).

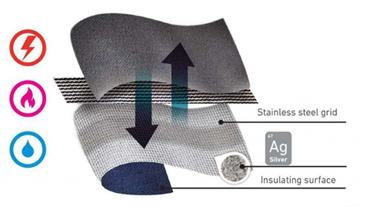

Our single-layer, double-side fabric combines the conductive power of silver-coated polymer threads and stainless steel filaments with the durability of meta-aramid Nomex yarn (Figure 2).

This design not only protects linemen but also ensures their comfort under various working conditions.

Key Advantages:

• Outer conductive layer: shields effectively against electric fields, functioning as a modern Faraday cage.
• Inner insulating layer: prevents direct contact with the skin, eliminating the need for non-conductive underwear and enhancing comfort, especially in warmer weather.
• Enhanced durability and ventilation: the fabric’s structure reduces the corrosive effects of sweat, significantly extending the garment’s lifespan and maintaining its protective properties.

Improved workwear, improved work life

The dual benefits of durability and comfort have made Electrostatics Ltd’s new fabric a favored choice among utility companies worldwide. Feedback from field linemen consistently highlights the ergonomic benefits of our conductive clothing, emphasizing that comfort does not compromise safety.

Conclusion

Electrostatics Ltd remains committed to pioneering developments in safety apparel for high-voltage environments. Our single-layer, double-side conductive fabric is more than just a piece of clothing. It’s an essential tool for ensuring the safety and efficiency of linemen everywhere. Experience the future of conductive clothing technology today and see why more industries are choosing Electrostatics Ltd for reliable protection solutions.

Interested in learning more about our innovative conductive fabric? Contact Electrostatics Ltd today for product details and how we can assist in safeguarding your workforce.

Az Electrostatics, we are proud that our products can contribute to safe work, network operation, and fewer power outages worldwide.

For more information on Electrostatics conductive clothing visit our product page!
